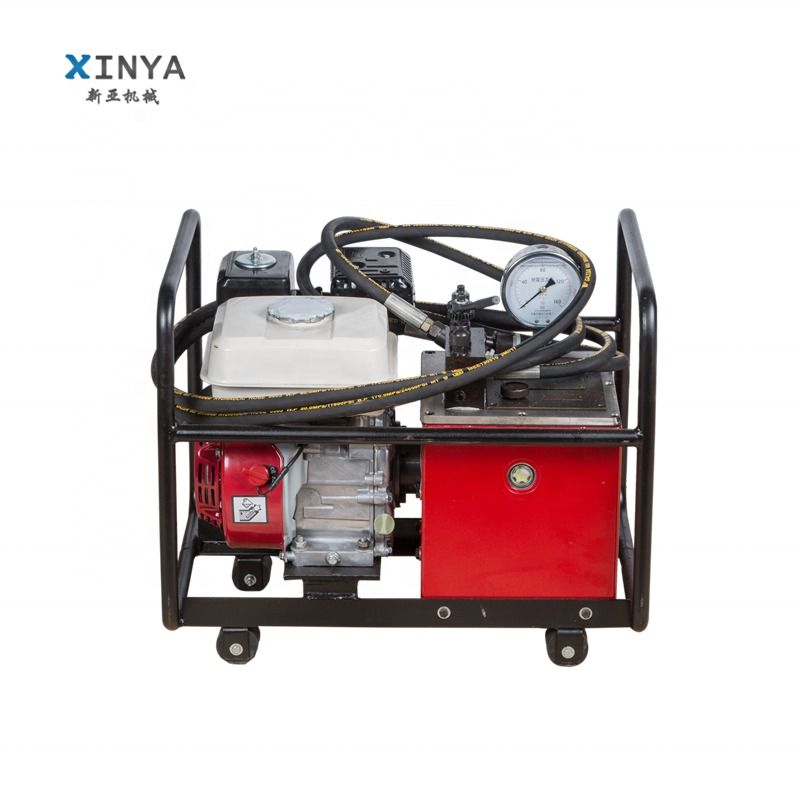

Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min

Nom De La Marque: XINYA
Numéro De Modèle: JYB-80-2Q
MOQ: 1
Prix: $900-1,000
Informations détaillées
Lieu d'origine:
Jiangsu, Chine
Pression nominale:
MPA 80
Poids:
60 kg
Flux nominal:
1,6 L/min
Pression maximale:
MPA 85
Volume de réservoir:
8 litres
Puissance du moteur:
5.5 ch
Modèle de moteur:
Honda GX160
Type de carburant:
Essence
Accident vasculaire cérébral:
course 4
Type de cylindre:
Cylindre unique
Style de refroidissement:
Refroidi à l'air
Système de départ:
Recul / Clé électrique Démarrer
Déplacement:
250CC
Max Output Pressure:
100 MPa
Structure de la pompe:
Pompe de piston
Mettre en évidence:

Honda 5.5HP hydraulic power unit

,

80MPa hydraulic crimping tool

,

1.6L/min hydraulic power unit

Description du produit
Hydraulic Power Unit with HONDA Gasoline Engine 5.5HP
Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 0 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 1 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 2
Application

This Yamaha Hydraulic Pump provides power for cutting tools, hydraulic compressors, punching machines, and other construction machinery. Ideal for field operations in electric power, railway, rescue, construction, and related industries.

Specifications
  • Fuel: Gasoline
  • Stroke: 4 stroke
  • Cylinder: Single Cylinder
  • Cooling Style: Air-cooled
  • Start: Kick Start
  • Displacement: 250cc
  • Starting System: Recoil/Electric Key start
Features
  • Easy to operate with high safety standards
  • Precision machining technique
  • Extended machine lifespan
  • Elegant and functional design
  • Wide application scope
  • Reliable performance with minimal malfunctions
Technical Data
Model No. JYB100Q
Max Pressure 85MPa
Rated Pressure 80MPa
Rated Flow 1.6L/min
Engine Honda Gasoline Engine GX160 5.5HP
Oil Tank 8L
Weight 60KG
Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 3 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 4 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 5 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 6 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 7
